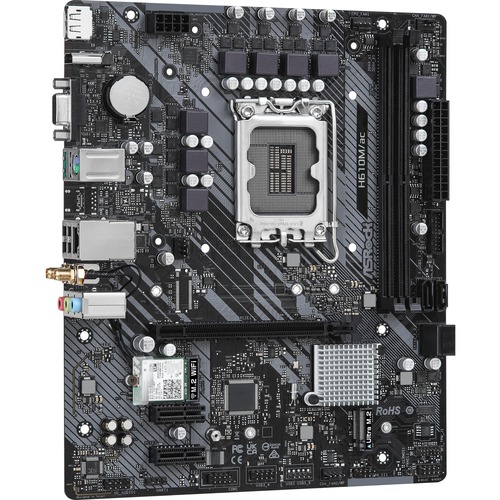

ASRock H610M/AC INTEL H610 LGA1700 MATX MB SUPPORTS 12TH AND 13TH GEN DDR4 3200MHZ HDMI/DP/VGA WIFI+BT
H610M/AC
ASRock H610M/ac Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX - 64 GB DDR4 SDRAM Maximum RAM - DDR4-3200/PC4-25600 - DIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 3 x SATA Interfaces
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel® Gigabit LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Features- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + Bluetooth
ASRock H610M/ac Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX - 64 GB DDR4 SDRAM Maximum RAM - DDR4-3200/PC4-25600 - DIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 3 x SATA Interfaces
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel® Gigabit LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + Bluetooth
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Form Factor | Micro ATX |
| Width | 243.8 mm |
| Depth | 200.7 mm |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Xe Graphics Architecture (Gen 12) |
| Onboard Video | On-board Video Chipset |
| Number of SATA Interfaces | 3 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of M.2 Interfaces | 2 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots | 3 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Bluetooth Standard | Bluetooth 4.2 |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | H610M/AC |
| Manufacturer Website Address | http://www.asrock.com |
| Manufacturer | ASRock, Inc |
| Product Model | H610M/ac |
| Product Name | H610M/ac Desktop Motherboard |
| Brand Name | ASRock |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 3200 MHz |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China RoHS |
| ErP/EuP Ready | |
| RoHS | |
| WEEE |
| HDMI | Yes |
| HDMI Version | 2.1 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Processor Generation Supported | 12th Gen |
| 13th Gen | |
| 12th Gen | |
| 13th Gen |
