  2. ASROCK Intel B760M-HDVP Motherboard, HDMI, DisplayPort, Ethernet
Brand:ASRock

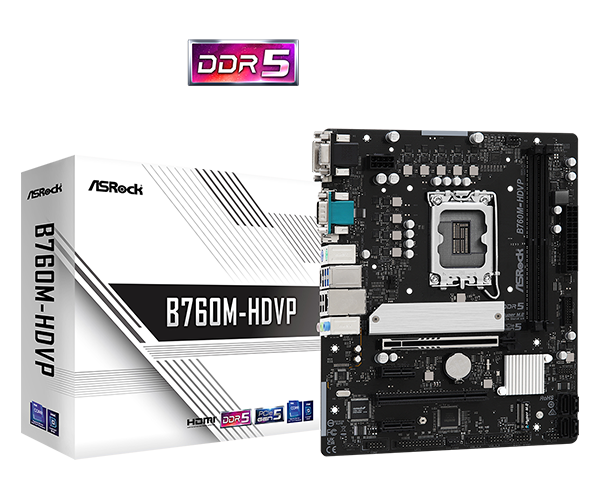

ASROCK Intel B760M-HDVP Motherboard, HDMI, DisplayPort, Ethernet

$ 249.00 $ 249.00 249.0 AUD

$ 249.00

Call for Availability
Add to Cart

B760M-HDVP

B760M-HDVP
  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase
  • Supports DDR5 7000+MHz (OC)
  • 1 PCIe 5.0 x16, 2 PCIe 4.0 x1, 1 PCI
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 DVI-D, 1 D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 2 Hyper M.2 (PCIe Gen4 x4), 4 SATA3
  • 2 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer





Specifications

Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
ChipsetIntel® B760
Form FactorMicro ATX Form Factor: 24.4 cm x 19.8 cm
I/O Connectors- 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen2 Type-A Ports - 2 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Integrated CPU GraphicsIntel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
LANGigabit LAN 10/100/1000 Mb/s
Memory/Type/Bus/Max.2 x DDR5 DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC), Max. capacity of system memory: 96GB
PCI SlotsCPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* ASMedia ASM1083: - 1 x PCI Slot
Processor SupportSupports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
RaidSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
RAM Type/Bus/Max.2 x DDR5 DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC), Max. capacity of system memory: 96GB
SocketLGA1700
Storage InterfaceCPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
Warranty3 Years
