  2. D-Link DSL-2885A Dual Band Wireless AC1200 Gigabit ADSL2+ / VDSL2 Modem Router
Brand:D-Link

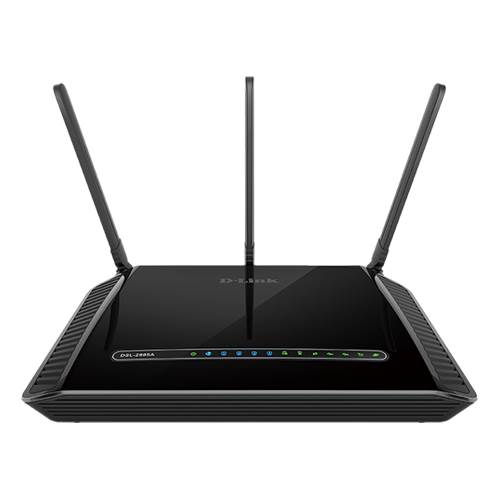

D-Link DSL-2885A Dual Band Wireless AC1200 Gigabit ADSL2+ / VDSL2 Modem Router

$ 229.00 $ 229.00 229.0 AUD

$ 229.00

Last In Stock
Add to Cart

DSL2885A

 Standards2.4GHz

  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b

5GHz

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11a

LAN/WAN

  • IEEE 802.3u
  • IEEE 802.3a

Physical Interfaces

  • VDSL/ADSL WAN Port
  • Gigabit Ethernet WAN Port
  • 4 Gigabit Ethernet Ports
  • Two USB 2.0 Ports
  • Reset Button

DSL ComplianceADSL Standards

  • Multi-mode
  • Full-rate ANSI T1.413 Issue 2
  • ITU-T G.992.1 (G.dmt) Annex A/C/I
  • ITU-T G.992.2 (G.lite) Annex A/C
  • ITU-T G.994.1 (G.hs)

ATM/PPP Support

  • Multiprotocol over AAL5 (RFC 1483/2684)
  • Bridged and routed Ethernet encapsulation
  • LLC encapsulation
  • VC-based multiplexing
  • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
  • ATM Cell Format ITU-T Rec. I.361
  • ATM Adaptation Layer Type 5 (AAL5)
  • PPPoA (RFC2364)
  • PPPoE (RFC2516)
  • PPP Link Control Protocol (RFC 1661)
  • Internet Protocol Control Protocol (RFC 1332)
  • PPP Authentication Protocol (RFC 1334)
  • PPP Challenge Handshake Authentication Protocol (RFC 1994)
  • Microsoft PPP CHAP extensions (RFC 2433)

WLAN Specifications

  • 802.11 n/g/b, up to 300 Mbps
  • 802.11 ac/a, up to 866 Mbps
  • Removable external Antennas
  • Wi-Fi Protected Setup (WPS)
  • Multiple SSIDs
  • Automatic rate adapting
  • WAN scheduling
  • Auto channel selection
  • WMM support
  • 64-bit & 128-bit WEP
  • WPA-PSK & WPA2-PSK
  • MAC address filtering

Network Services

  • IPv4
  • DHCP server/client/relay
  • DNS relay
  • Dynamic DNS (DDNS)
  • Routing Information Protocol (RIP) v1/v2
  • Internet Control Message Protocol (ICMP)
  • Virtual server (Port forwarding)
  • Simple Network Time Protocol (SNTP)
  • 802.1d MAC Bridge (up to 256*8 MAC addresses)
  • IGMP proxy v1/v2
  • IGMP snooping v1/v2/v3

NAT ALGs

  • PPTP
  • L2TP
  • FTP
  • RTSP (RealTime Streaming Protocol)
  • SIP v1/v2
  • IPsec

Universal Plug and Play Support

  • UPnP based auto-configuration
  • UPnP based port forwarding
  • UPnP IGD 1.0

Device Management

  • Web configuration
  • Telnet management
  • Web UI/X-Modem/FTP/TFTP firmware upgrade
  • Diagnostic tools for DSL and IP Ping
  • One Touch Setup wizard

Mobile Apps

  • One-Touch Setup

Advanced Features

  • VPN pass-through
  • Guest Network Support
  • UPnP™ Support
  • VLAN Tagging (NBN/UFB)
  • Multiple PVCs (for use with IPTV)
  • Wi-Fi WMM Quality of Service
  • IPv6

Dimensions

  • 230 x 155 x 37 mm

Weight

  • 523 grams

Operating Temperature

  • 0º to 45º C

Operating Humidity

  • 5% to 95% non-condensing

Certifications

  • Wi-Fi Certified
  • CE/C-Tick
  • RCM
  • Wi-Fi Protected Setup (WPS)
