Deepcool AS500 CPU Cooler 5x6mm Heatpipes, Universal RAM Co
R-AS500-BKNLMN-G
DESCRIPTION

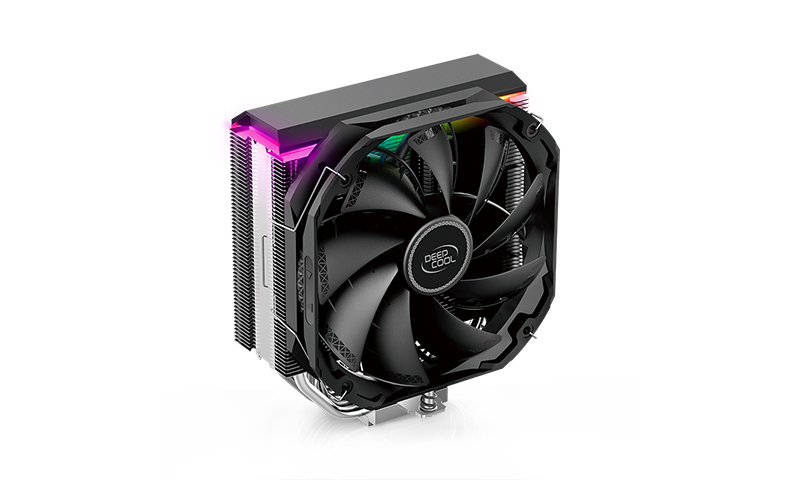

DeepCool AS500 single tower CPU cooler boasts a five heat pipe design with a TF140S PWM fan for great performance in a slim profile.
Single tower cooler with 5 heat pipes high fin density.
Slim profile for maximum RAM height compatibility.
High-performance TF140S PWM fan included.
A-RGB LED controller included.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance TF140S PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.
Application For
Intel LGA2066/2011-v3/2011/1200/1151/1150/1155
AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Product Dimensions 142×98×164 mm
Heatsink Dimensions 140×49×159 mm
Net Weight 1030 g
Heatpipe Ø6 mm×5 pcs
Fan Dimensions 140×140×25 mm
Fan Speed 500~1200 RPM±10%
Fan Airflow 70.81 CFM
Fan Air Pressure 1.14 mmAq
Fan Noise ≤29.2dB(A)
Overall Noise ≤26 dB(A)
Fan Connector 4-pin PWM
Bearing Type FDB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.11 A
Fan Power Consumption 1.32 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 1.4 W
EAN 6933412727064
P/N R-AS500-BKNLMN-G
