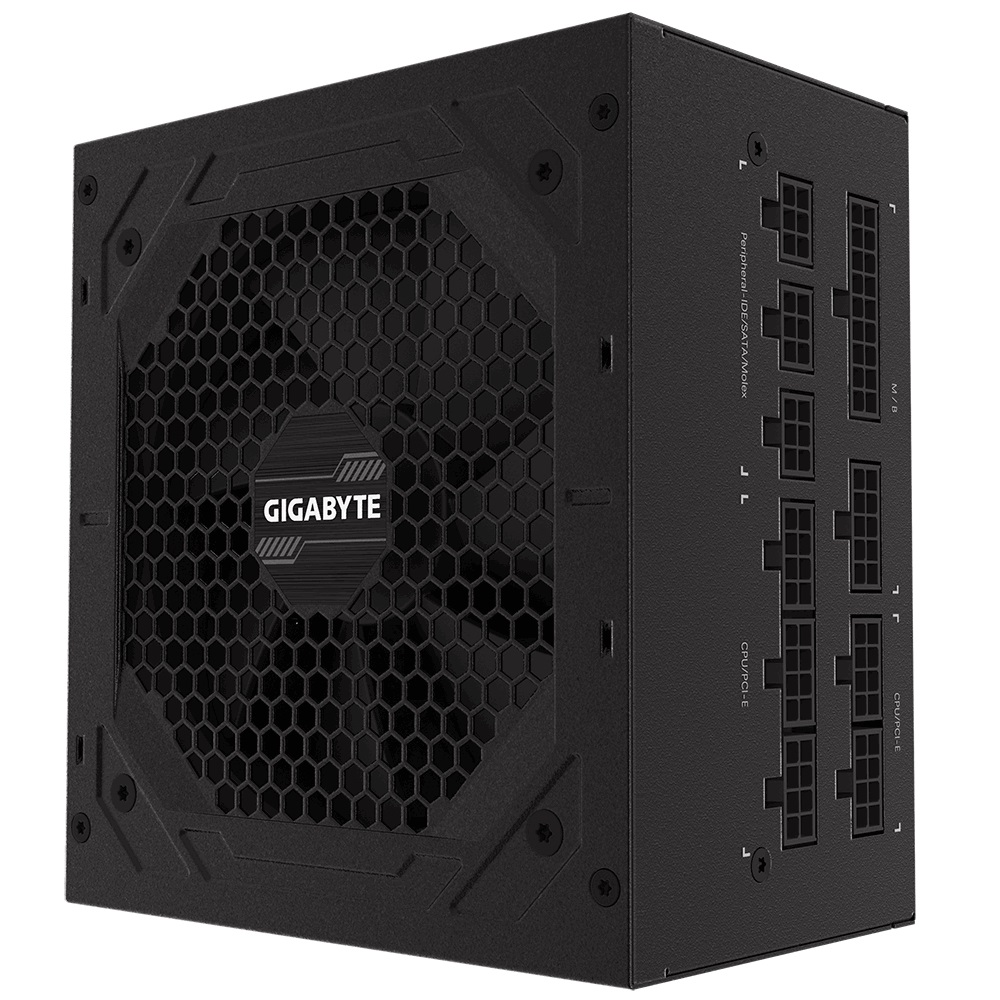

Gigabyte P750GM 750W ATX PSU Power Supply 80+ Gold >90% Modular 2x8 Pin120mm Fan Black Flat Cables Single +12V Rail Japanese >100K Hrs

DESCRIPTION

Gigabyte P750GM 750W ATX PSU Power Supply 80+ Gold >90% Modular 2x8 Pin120mm Fan Black Flat Cables Single +12V Rail Japanese >100K Hrs

Features
80 PLUS Gold certified
Fully modular design
120mm Smart Hydraulic Bearing (HYB) Fan
Japanese capacitors
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact size
5 years warranty (Adjusted according to different regions)

Model GP-P750GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 1‎00-240 Vac (full range)
Input Current 1‎2-6 A
Input Frequency 6‎0-50 Hz
Output Capacity 7‎50W
Dimension 1‎50 x 140 x 86 mm
Fan Type 1‎20mm Hydraulic Bearing ( HYB ) fan
80 PLUS Gold
Efficiency 9‎0% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 1‎00-500ms
Hold Up Time >16ms
Cable Type Flat, All black

Connectors ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
