  2. Thunderbolt 3 Dock - Mini - Dual HDMI - 4K 60Hz - Bus Powered - Laptop Docking Station - USB C Docking Station
Brand:StarTech

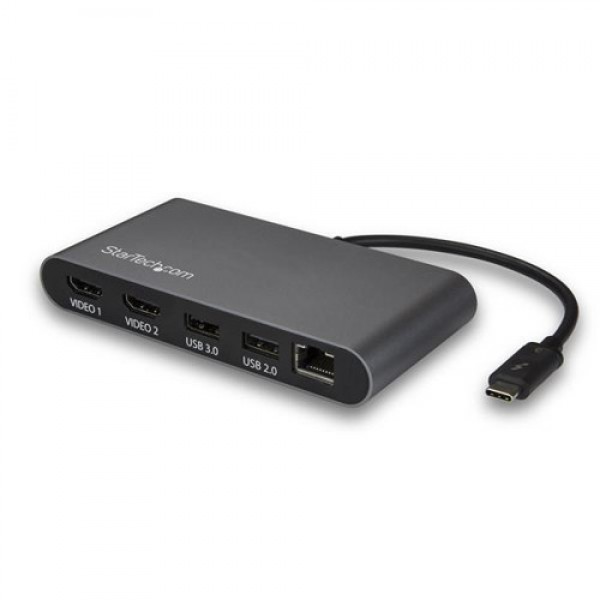

Thunderbolt 3 Dock - Mini - Dual HDMI - 4K 60Hz - Bus Powered - Laptop Docking Station - USB C Docking Station

$ 199.00 $ 199.00 199.0 AUD

$ 199.00

In Stock
Add to Cart

TB3DKM2HD 065030872911

This Thunderbolt™ 3 docking station packs big performance into a cost-effective, compact mini dock, delivering essential connections for productivity. The bus-powered Thunderbolt 3 dock lets you connect to dual 4K HDMI displays, Gigabit Ethernet and two USB (Type-A) ports and for a flexible setup, the attached USB-C cable has an extended length of (7.9 in./ 20 cm).

Create a Dual-4K 60Hz Workstation

Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt 3 to HDMI dock supports 40Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt 3 port. Run resource-demanding applications on two independent displays without draining system resources.

Connect your laptop to:

  • 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Easy Installation & Deployment 

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

The Ports You Need Most

To enhance your productivity, the Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support) ensures reliable wired network access. A USB 3.0 Type-A port, with ample space around it, lets you connect a USB device, such as a flash drive, for easy file access. Connect another USB device using the USB 2.0 Type-A port.

The TB3DKM2HD is Thunderbolt Certified, and backed by a StarTech.com 3-year warranty and free lifetime technical support.

Applications

  • Review/edit images or media files on two 4K HDMI displays
  • Transfer a 4K movie in under 30 seconds
  • Ideal for shared or temporary work stations, such as hot desks (hoteling)
  • HARDWARE
    4K SupportYes
    Bus TypeThunderbolt 3
    Chipset IDIntel - Alpine Ridge JHL6540
    Intel - WGI210AT
    Texas Instruments - TPS65983
    ASMedia - ASM1042A
    Parade - PS176
    Displays Supported2
    Fast-Charge Port(s)No
    Industry StandardsThunderbolt 3
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    USB 3.0 - Backward compatible with USB 2.0 and 1.1
    USB 2.0 - Backward compatible with 1.1
    PERFORMANCE
    Auto MDIXYes
    Compatible Networks10/100/1000 Mbps
    Full Duplex SupportYes
    Maximum Data Transfer Rate40 Gbps (Thunderbolt 3)
    5 Gbps (USB 3.0)
    2 Gbps (Ethernet; Full-Duplex)
    Maximum Digital ResolutionsDual 4K displays - HDMI 4096 x 2160p @ 60Hz / 3840 x 2160p @ 60Hz
    PXEYes
    Type and RateThunderbolt 3 - 40 Gbit/s
    UASP SupportYes
    CONNECTOR(S)
    Connector Type(s)1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Male
    2 - HDMI (19 pin) Female
    1 - USB Type-A (9 pin) USB 3.0 Female
    1 - USB Type-A (4 pin) USB 2.0 Female
    1 - RJ-45 Female
    SOFTWARE
    OS CompatibilityWindows® 7, 8, 8.1, 10
    macOS 10.12 - 10.15
    SPECIAL NOTES / REQUIREMENTS
    NoteA 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
    System and Cable RequirementsThunderbolt 3 equipped computer with a Thunderbolt 3 port.
    POWER
    Power SourceUSB-Powered
    ENVIRONMENTAL
    Humidity5~95% RH (Non-condensing)
    Operating Temperature5°C to 35°C (41°F to 95°F)
    Storage Temperature-40°C to 70°C (-40°F to 158°F)
    PHYSICAL CHARACTERISTICS
    Cable Length7.9 in [200 mm]
    ColorBlack & Gray
    MaterialAluminum
    Product Height0.7 in [1.9 cm]
    Product Length4.9 in [12.4 cm]
    Product Width2.4 in [61 mm]
    Weight of Product5.1 oz [145.8 g]
    PACKAGING INFORMATION
    Package Height1.4 in [36 mm]
    Package Length8.2 in [20.8 cm]
    Package Width5.7 in [14.5 cm]
    Shipping (Package) Weight9.2 oz [260 g]
    WHAT'S IN THE BOX
    Included in Package1 - Docking Station
    1 - User Manual
