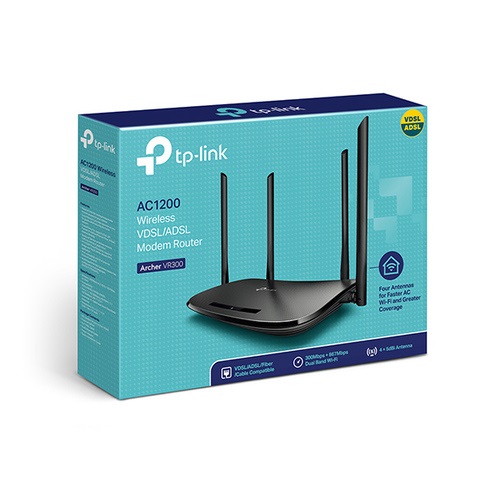

TP-Link Archer VR300 AC1200 1200Mbps Wireless VDSL/ADSL Modem Router 1.2Gbps 867Mbps@5GHz 300Mbps@2.4GHz 3xLAN 1xWAN 1xRJ11 4xAntennas
NWTL-ARCHERVR300
DESCRIPTION
TP-Link Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router 1.2Gbps 867Mbps@5GHz 300Mbps@2.4GHz 3xLAN 1xWAN 1xRJ11 4xAntennas
Parental Controls: manage responsible internet access for your children
Guest Network: provides separate access for guests while securing the home network
Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
Quality of Service: prioritizes network traffic by device or application
IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
IPv6: compatible with IPv6 (Internet Protocol version 6)
Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)
HARDWARE FEATURES
Interface 3 10/100 RJ45 LAN Ports
1 10/100 RJ45 LAN/WAN Port
1 RJ11 Port
Button WPS Button
Power On/Off Button
Reset Button
Power Supply 12V/1A
VDSL2 Standards ITU G.993.2, Up to 17a pro¬le (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 385*290*76mm
Antenna Type 4 fixed external antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Wireless Speeds 867Mbps at 5GHz
300Mbps at 2.4GHz
Transmit Power 2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)
Wireless Functions Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable
Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, QSS(WPS)
SOFTWARE FEATURES
Quality of Service ATM QoS, Bandwidth Control
Security NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router
Management Web Based Con¬guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
