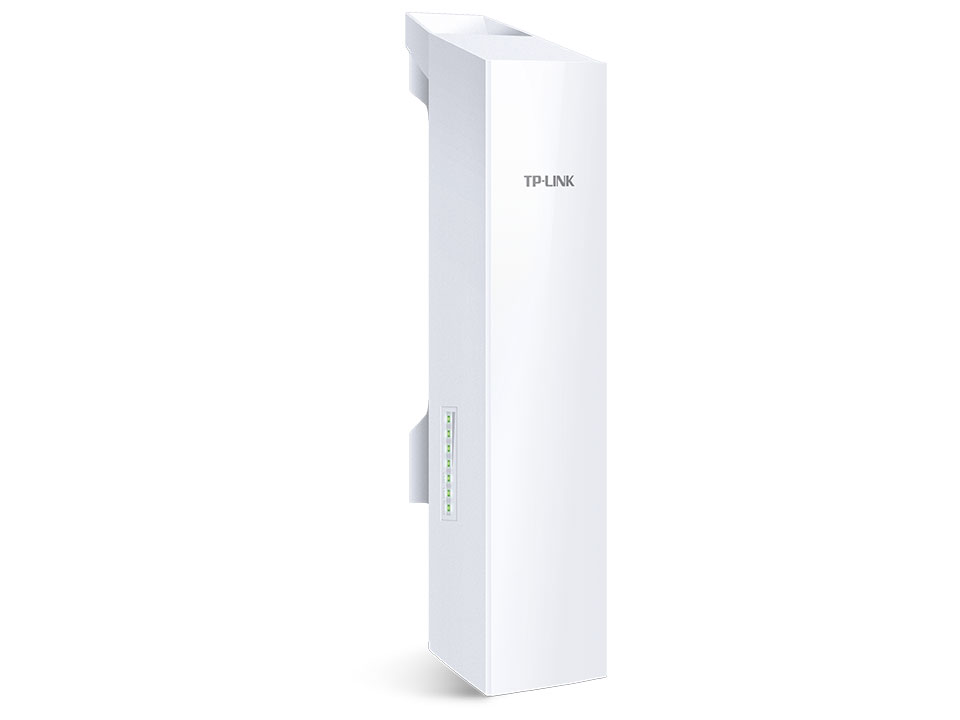

TP-Link CPE220 300N 12dBi Outdoor Access Point Passive PoE up to 13 km
NWTL-CPE220
TP-Link CPE220 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point 802.11b/g/n 2x2 dual-polarized directional MIMO antenna Passive PoE up to13km
Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 30dBm/1000mw
System-level optimizations for more than 13km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps
