Brand:TP Link

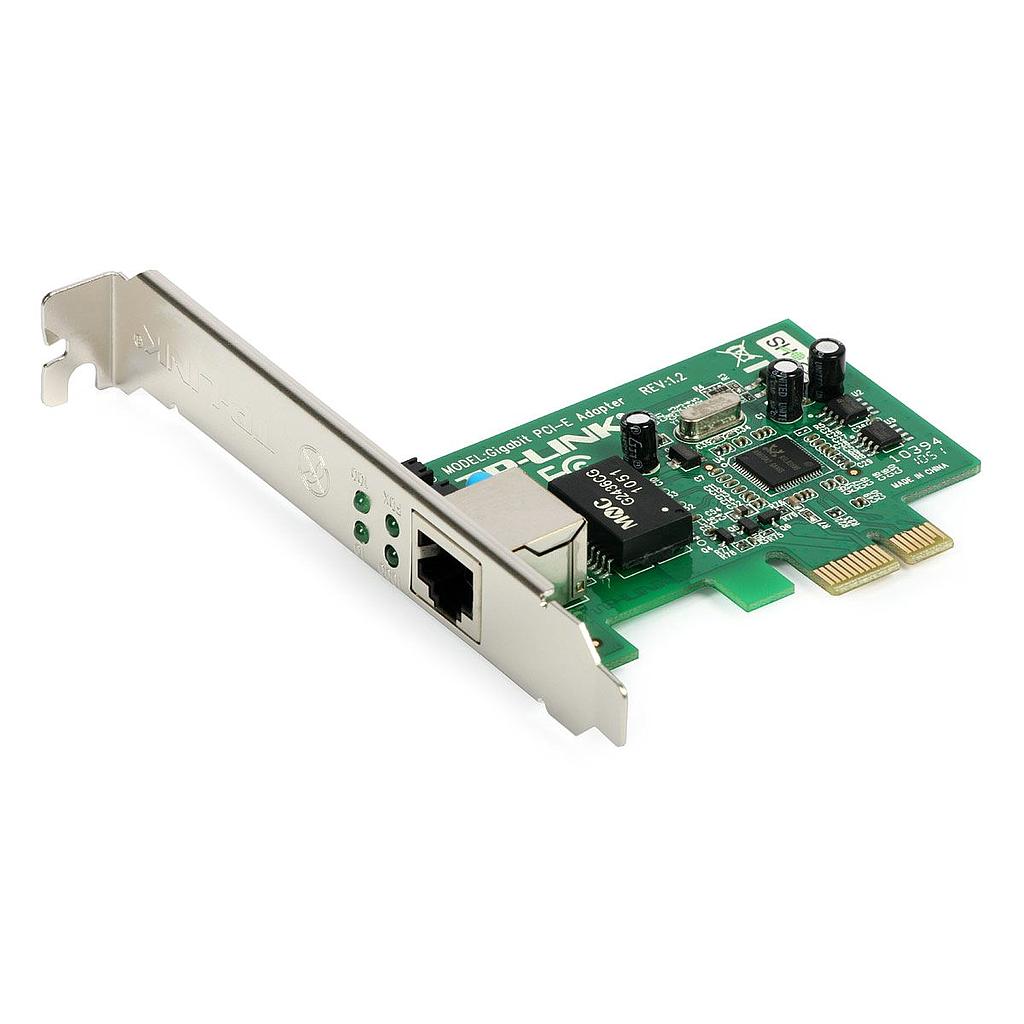

TP-Link TG-3468 Gigabit PCI Express
CARTG3468
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
| Interface | 32-bit PCI Express1 10/100/1000Mbps RJ45 port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| Data Rates | 10/100/1000Mbps for Half-Duplex mode20/200/2000Mbps for Full-Duplex mode |
| LED Indicator | 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Gigabit PCI Express Network Adapter TG-3468Resource CDQuick Installation Guide |
| System Requirements | Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
