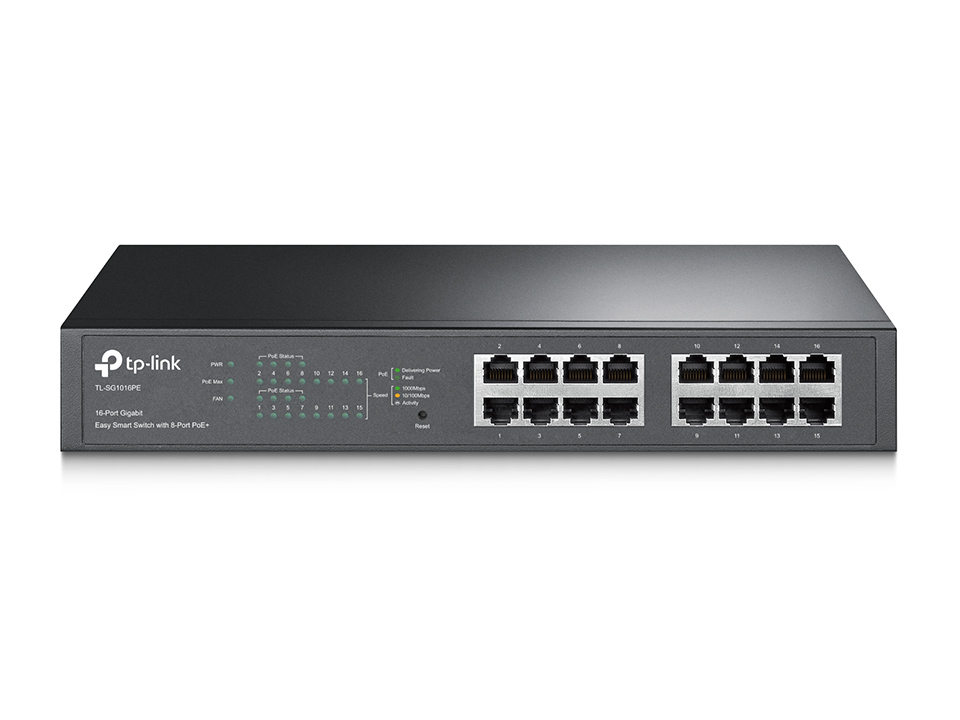

TP-Link TL-SG1016PE 16-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ 32Gbps IEEE 802.3af/at Priority Function Mac Address Auto-Learning

TP-Link TL-SG1016PE 16-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ 32Gbps IEEE 802.3af/at Priority Function Mac Address Auto-Learning

16 10/100/1000Mbps RJ45 ports

Equipped with 8 PoE+ supported ports to transfer data and power over a single cable

Works with IEEE 802.3af/at compliant devices, expanding home and office networks

Innovative energy-efficient technology reduces power output by up to 75%*

Plug and play design, no configuration required

*Actual data may vary in different usage environment.

HARDWARE FEATURES

Interface 16 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity 1

Power Supply 100-240VAC, 50/60Hz

Power Consumption Maximum (PoE on): 124.4W (220V/50Hz)

Maximum (PoE off): 14.4W (220V/50Hz)

PoE+ Ports(RJ45) 8 Ports

Backbound Bandwidth 32 Gbps

Mac Address Table 8K

Buffer Size 1.5 Mbits

Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)

SOFTWARE FEATURES

Transfer Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SG1016PE

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

Consumption 9.5 watts (max. no PD connected)

140.1 watts (max. with 126w PD connected)

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
