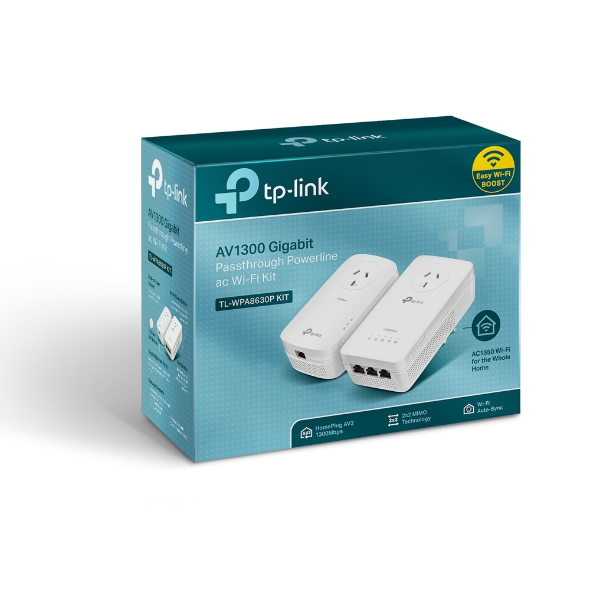

TP-Link TL-WPA8630P-KIT AV1300 1350Mbps Wi-Fi Passthrough Range Extender Powerline 3x1Gbps LAN 300m Range HomePlug AV2 2X2 MIMO Wi-Fi Clone Button
NWTL-WPA8630PKIT
DESCRIPTION
TP-Link TL-WPA8630P-KIT AV1300 1350Mbps Wi-Fi Passthrough Range Extender Powerline 3x1Gbps LAN 300m Range HomePlug AV2 2X2 MIMO Wi-Fi Clone Button
AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
AC1350 – Dual band Wi-Fi with combined speeds of up to 1350Mbps
HomePlug AV2 – Provides ultra-fast powerline transfer speeds of up to 1300Mbps
2X2 MIMO – Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
Wi-Fi Clone Button – Automatically copies the network name (SSID) and password of your main router with the touch of a button
Auto-Sync – Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
Extra Power Socket – Get power from the outlet for your other devices with the integrated power socket
HARDWARE FEATURES
Plug Type AU
Standards and Protocols HomePlug AV2, IEEE 1901,IEEE 802.3, IEEE 802.3u
IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/ac 5GHz
Interface 3 * Gigabit Ethernet Port, Power Socket
Button Pair, Reset, LED On/Off, Wi-Fi Clone
Power Consumption Maximum: 10.8 W (230V/50Hz)
Standby:5W (230V/50Hz)
LED Indicator Power, Powerline, Ethernet, 2.4G Wi-Fi, 5G Wi-Fi
Dimensions ( W x D x H ) TL-WPA8630P：6.0 x 3.0 x 1.7 in. (152 x 75 x 42mm)
TL-PA8010P：5.2×2.8×1.7 in. (131×72×42 mm)
Range 300 meters in house
SOFTWARE FEATURES
Quality of Service ToS
Supports up to 4-level type QoS
Support up to 8-level VLAN priority field
Security 128-bit AES Encryption
Modulation Technology OFDM
IGMP IGMP v1/v2/v3
OTHERS
Certification CE, RoHS
Package Contents AV1300 Passthrough Powerline ac Wi-Fi Kit: TL-WPA8630P & TL-PA8010P
2-meter CAT.5e Ethernet Cable * 2
Quick Installation Guide
Box Dimensions (W X D X H) 9.1 x 7.5 x 3.9 in. (230x190x100 mm)
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux2
Environment Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Tempe
