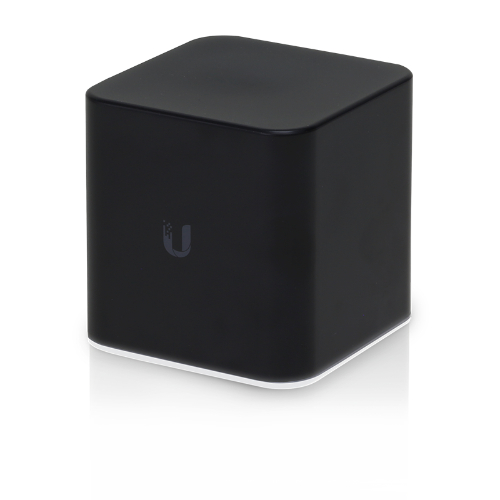

Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point - 802.11AC Wireless - 4x Gigabit Ethernet - Super Antenna provides wide-area coverage
NHU-ACB-AC
DESCRIPTION
Once installed, this Wi-Fi access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1167 Mbps. If that's not enough, clients can plug Ethernet-enabled devices in to any of the four Gigabit Ethernet ports for a more reliable wired network connection. The airCube is powered by a 24V Passive PoE connection or plug in the included power adapter when PoE power is unavailable.
PRODUCT HIGHLIGHTS
802.11ac Wi-Fi Network Standard
Up to 1167 Mbps Wi-Fi Data Throughput
2.4 GHz & 5 GHz Frequencies
Internal Dual-Band Antennas
Wireless Performance
Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
• 2.4 GHz radio band speeds of up to 300 Mbps
• 5 GHz radio band speeds of up to 866.7 Mbps
Versatile Power Options
Convenient PoE passthrough to power a 24 V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
• The airCube AC requires the included power adapter or 24V, 1A PoE input
Power Supply 24 VDC
PoE PoE Out
Controllable 24 V PoE out (+4, 5; -7, 8) on WAN port
Management Interface Wi-Fi / Ethernet
Networking Interface 4 x Gigabit Ethernet ports
Antenna Gain 2.4 GHz
4 dBi
5 GHz
5 dBi
Temperature & Humidity Operating Temperature
-14 to 122° F / -10 to 50°C
Operating Humidity
5 to 95% non-condensing
